Peter Pugger Clamshell Raku Kiln

Name: Peter Pugger Clamshell Raku Kiln
Brand: Kilns
SKU: PeterPugger-RAKU
Availability: InStock

$3,399.00

Utilizing years of history and a plethora of design improvements, this truly mobile raku kiln is designed for efficient, easy, one person operation. No need to worry about lifting a heavy chamber over red-hot kiln shelves or damaging product as a result. Simply split the kiln in two, allowing quick access to the kiln shelves. The fully insulated fiber walls and a soft brick floor allows the kiln to heat and cool rapidly, eliminating the need to preheat. Roll the kiln to a safe location, complete a firing cycle within 30-45 minutes and roll it back into storage. It’s that simple!

Features:

Small, Portable, Efficient.
Easy Accessibility to the work.
Quick cycle times, no preheat required.
Clears standard door.
One person operaton.

Includes:

Laser Formed Frame: Steel base and sides laser formed, welded and high temp coated for durability. 2ea.- 8″ diameter industrial wheels mounted for easy maneuverability.
High Temp Brick: The kiln base is lined with 2,300 degree soft brick
Burner: 75,000 BTU Burner MR-750
Kiln Furniture: 1ea.-5/8″ Thk. (16″ x 16″) Shelf and 3ea.- 4″ posts supplied.

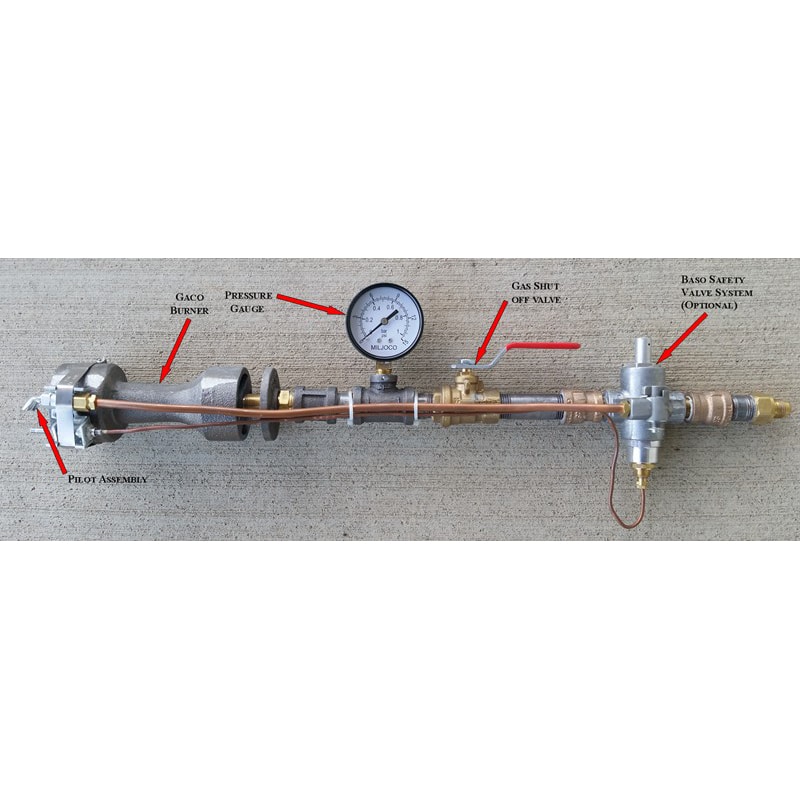

High Pressure Regulator, Pressure Gauge, Gas Valve and 12’ft. Gas Hose included.

NOT Included: Propane Tank. Minimum of 40lb Tank Size. (24″L x 12.5″ Diameter, 9.4 Volume Capacity, 29.9 lb. Empty Wt, 72lb Full Wt.)

Warning: Propane tanks smaller than 40lb may freeze over during firing.

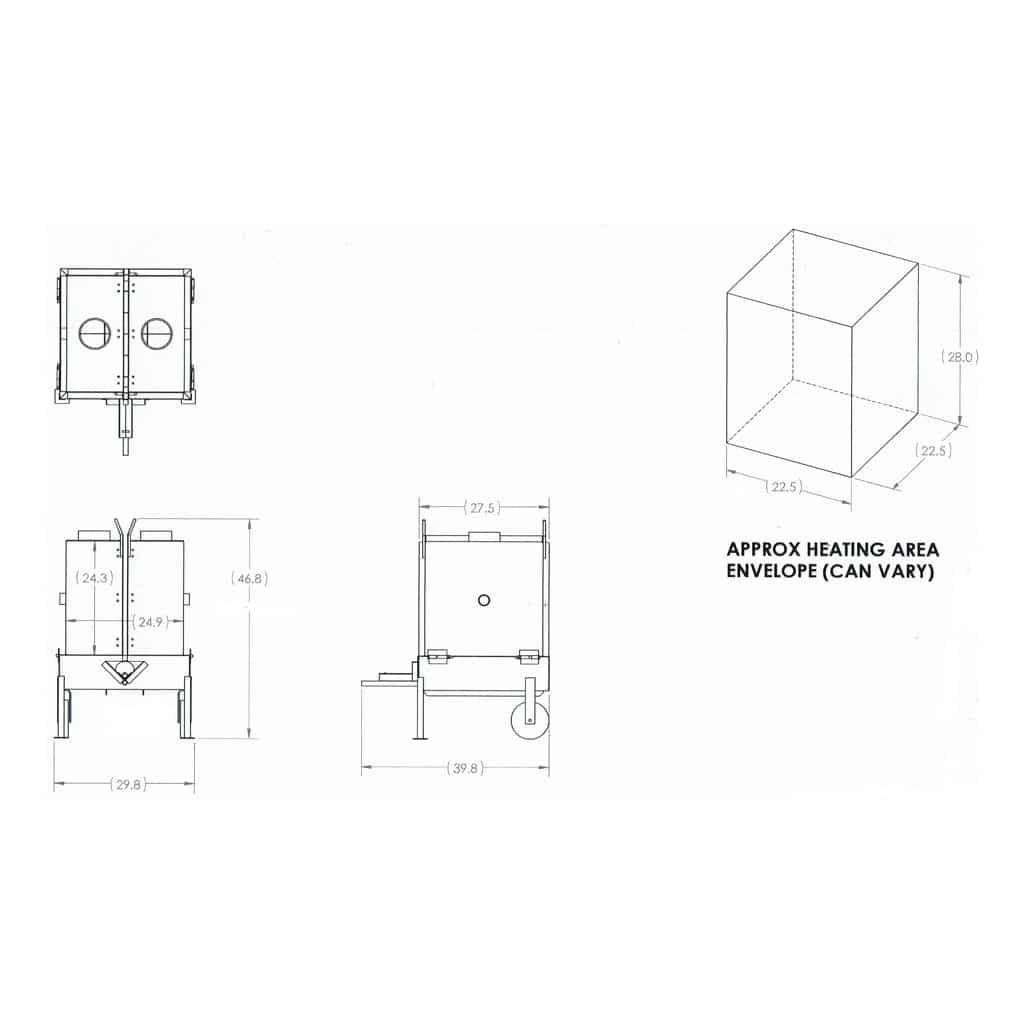

Approximate Heating Area Envelope (May Vary Slightly): 22.5″ W x 22.5″ L x 28″ H
Outside Dimensions: 29.8″ W x 39″ L x 46.8″ H

*This model ships direct from the manufacturer. Estimated lead time is 4-6 weeks.

SKU: PeterPugger-RAKU Categories: Kilns, Ceramic Kilns, Compact Kilns (0 - 1 Cubic Ft.) Brand: Kilns, Peter Pugger

Details

fuel: Gas
shape: Square
cone range: High Fire
brick size: 2.5"
loading type: Clamshell

Kiln Overview

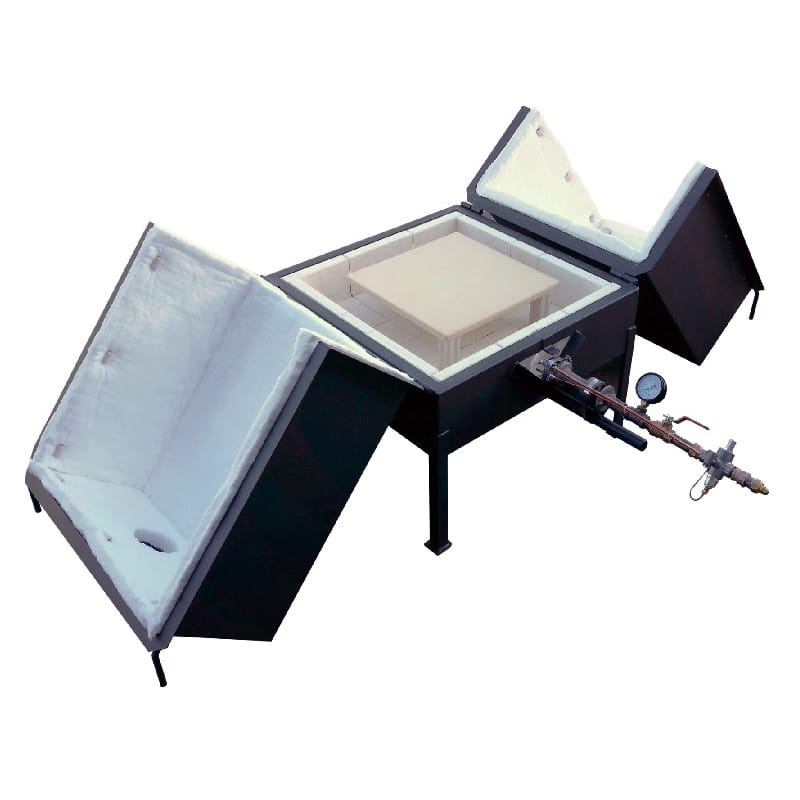

Constructed from high temperature fiber in a laser cut and formed metal frame. The sides fold down to offer unparalleled access to the hot ware. One person can easily fire this kiln, load and unload it without assistance.

Insulating firebrick in a welded steel frame form the base of the kiln. Because of the fiber walls and soft brick base, the kiln heats and cools rapidly (eliminates the need to preheat). An entire heating cycle takes approximately 30-45 minutes using a propane tank and burner.

The folding sides are made of sheet metal and angle iron. The sides hinge from the base and are lined with 1″inch thick ceramic fiber. Two vent holes on top of the kiln can be covered to allow control of the firing. Large “peep” holes on two sides give easy visibility into the kiln to inspect the cones and for thermocouple placement.

The kiln is fired with a 75,000 BTU venturi burner in a fixed cradle. Modular construction allows easy storage or transportation. With the added casters the kiln can be moved in and out storage. The optional thermocouple safety shut-off system and pilot light provide a safe and reliable gas supply system.
