Olympic 2327HE Ceramic Kiln – Cone 10

Name: Olympic 2327HE Ceramic Kiln - Cone 10
Brand: Ceramic Kilns
SKU: Olympic-2327HE
Availability: InStock

Original price was: $4,575.00 – $4,675.00Price range: $4,575.00 through $4,675.00.Current price is: $3,888.00 – $3,975.00Price range: $3,888.00 through $3,975.00.

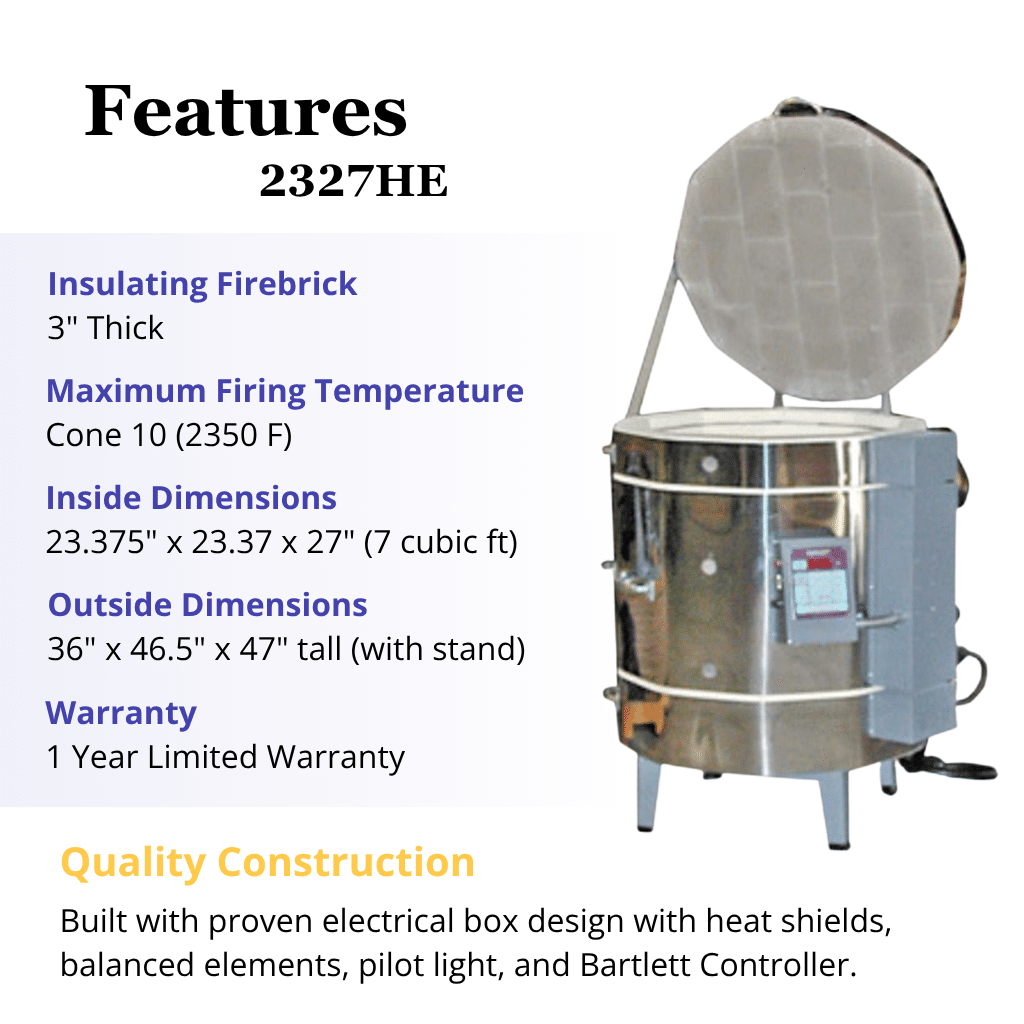

The Olympic 2327HE is the ideal medium sized Cone 10 ceramic kiln!

Stackable electric models are built with the Olympic-proven electrical box design which has heat shields with top and bottom perforations to keep the electrical components cool, and balanced heating elements ensure even heating of the firing chamber under all firing conditions.

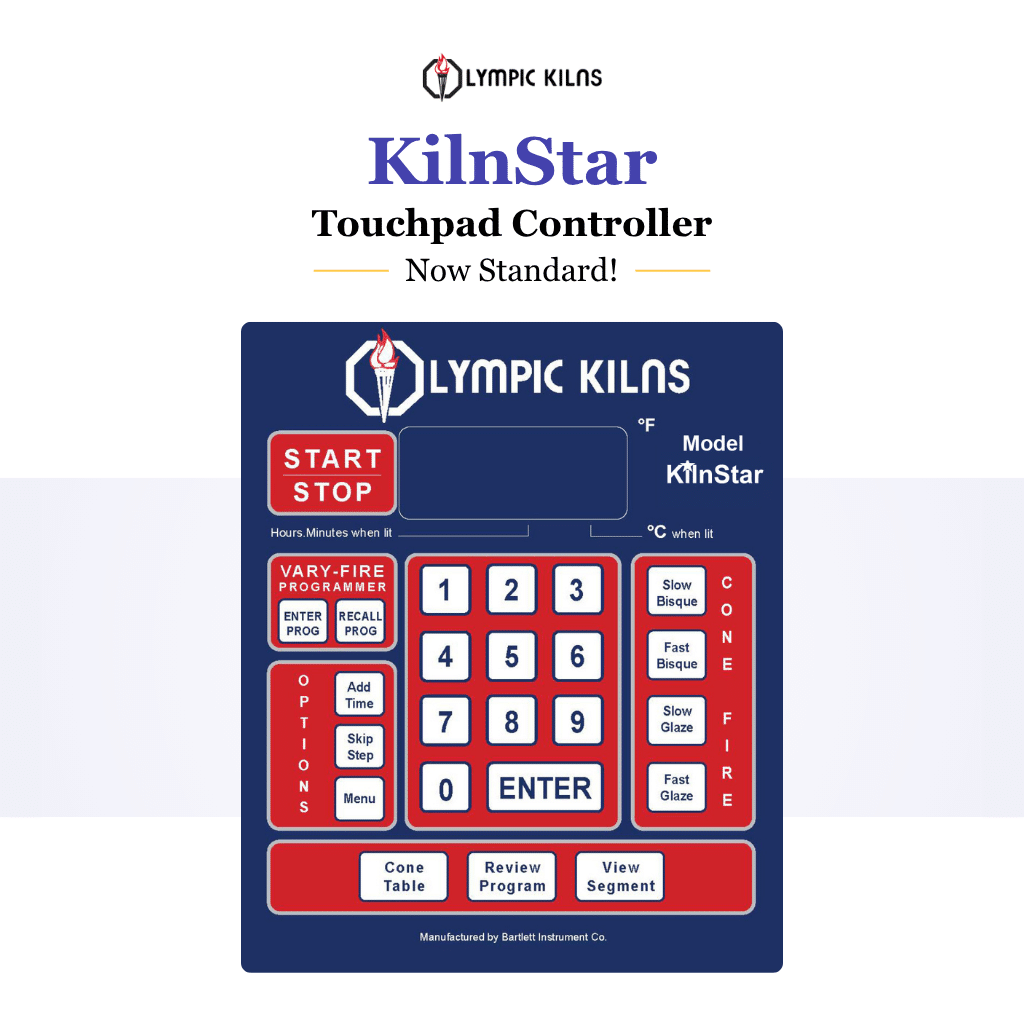

These models come equipped with a pilot light, metal stand, stainless steel jacket, and a Bartlett KilnStar digital controller.

Interior Dimensions: 23.375″ w x 27″ h (7 cubic ft.)
Maximum Firing Temperature: Cone 10, 2350 F
One year Limited Warranty

*This model ships direct from the manufacturer. Estimated lead time is 3-4 weeks.

Free Shipping To Most Locations Within The Contiguous US! *Terms Apply

Voltage

Phase

Clear

Upgrades & Accessories

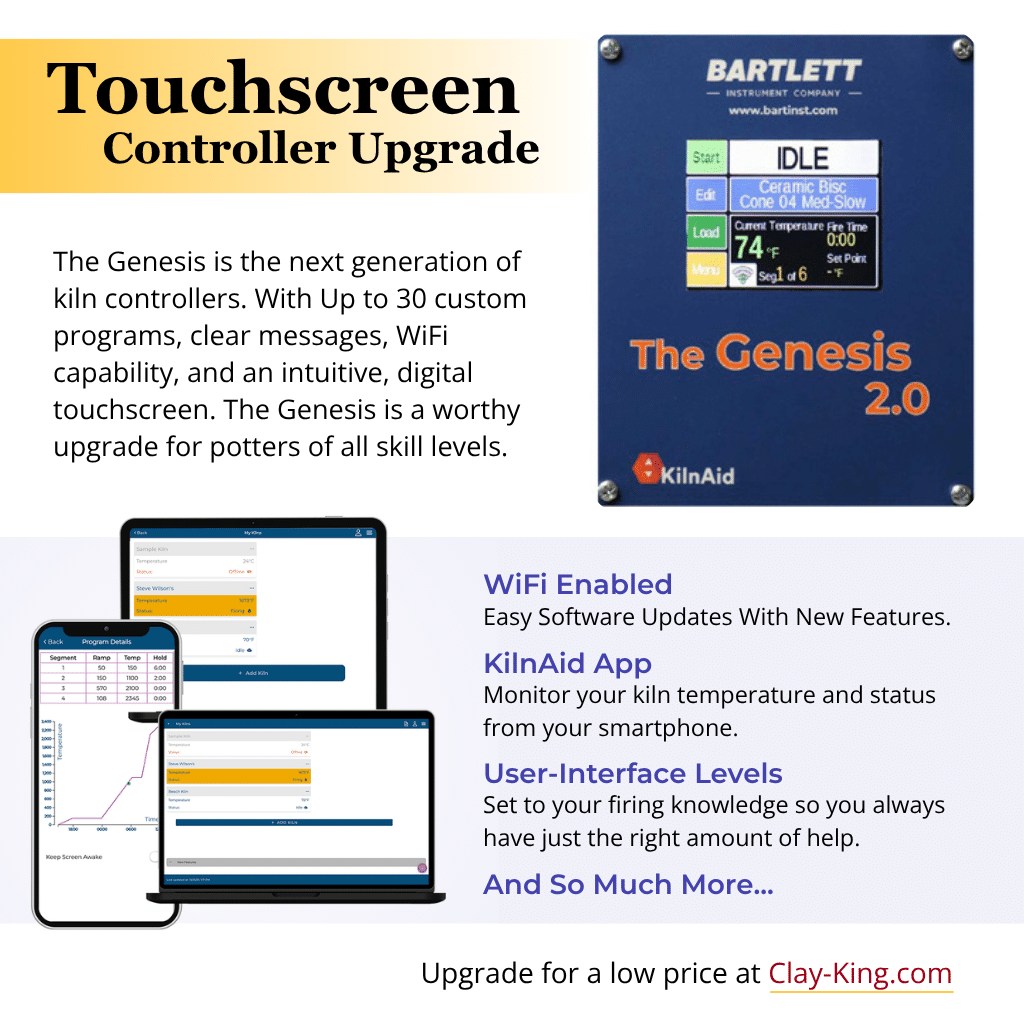

Upgrade to Genesis Touchscreen Controller

Add for $110.00

Add Furniture Kit for 23H kilns

Furniture Kit includes: 1 - 21” x 21” x 1” round shelf, 4 - 21” x 10.5” x 1” half shelves, 6 ea - 4, 6, 8, 10 inch large square posts, 1 lb bag kiln wash

Add for $655.00

Add Castors

Wheels on kiln stand or frame for moving from one location to another for kilns with 8″ stands or frames.

Add for $295.00

Add Zone Control (2-3 Zones)

Zone Control adds a thermocouple to each section (zone) of the kiln, allowing for precise measurement and control of temperature. While not neccessary for most firings, it's useful during specialty programs or large sculptures to ensure consistent temperatures in the entire kiln. Number of thermocouples depend on number of sections in the kiln.

Add for $270.00

Includes Olympic 2327HE, 2527HE, and 3027HE (240-Volt, Single Phase Power and Standard Mechanical Relays Only). Expires 5/14/26. More Details

Select Your Free Upgrade *

Free Genesis Touchscreen Controller
Free Zone Control

Note: If you need both upgrades, select one here and the other at normal price.

Total: $3,888.00

Add to wishlist

SKU: Olympic-2327HE Categories: Ceramic Kilns, Kilns, Large Kilns (5 - 10 Cubic Ft.), Olympic Kilns Brand: Ceramic Kilns, Olympic, Top-Loading Kilns

Details

fuel: Electric
voltage Options: 208, 240
phase Options: 1 Phase, 3 Phase
shape: Circle
cone range: High Fire
brick size: 3"
loading type: Top

Kiln Overview

Measuring 7 cubic feet, this is the ideal medium sized kiln- fire tall projects or short, big or small! This kiln has a maximum temperature of Cone 10. Equipped with Olympic’s proven electrical box design with heat shields to keep the components cool, stackable electric models’ balanced heating elements insure even heating of the kiln chamber under all firing conditions. These models come equipped with pilot light, metal stand, and a stainless steel jacket.

Includes One Year Limited Kiln Warranty for Cone 10 Models

Specific Kiln Information

Model	2327HE	Wiring Specifications	1 Phase		3 Phase
Equipped with Lid Lift Assist	Yes	Volts	208	240	208	240
Inside Chamber Dimensions w x d x h (inches)	23 3/8 x 27	Amps	48	47	32	31
Cubic Feet	7	Watts	9,984	11,280	9,984	11,280
Outside Dimensions with Stand or Frame w x d x h (inches)	36 x 46.5 x 47	Breaker Required	60 Amp	60 Amp	40 Amp	40 Amp
Brick Thickness	3”	Plug Configuration	NEMA 6-50		Direct Wired
Maximum Temperature	Cone 10 – 2350°F/1288°C	Copper Wire Size	#6, #4 if the circuit is longer than 40 ft
Est Ship Wt.	350 lbs.
