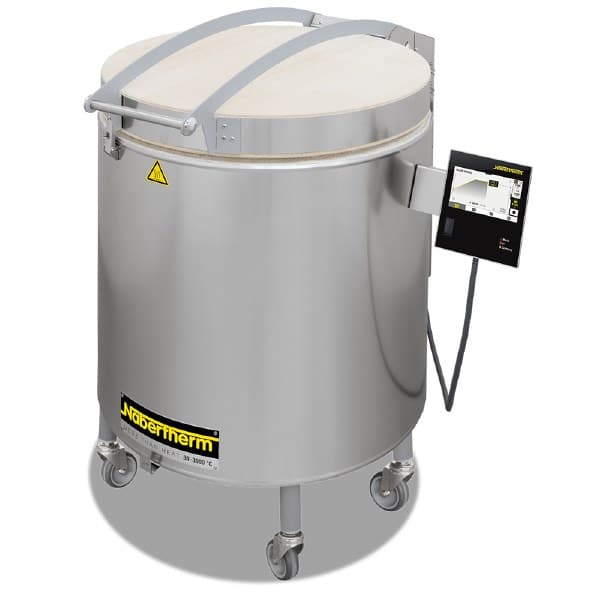

Nabertherm Top 60R – Top-Loading Increased Load Ceramic Kiln with 16″ x 17.8″ Chamber
Original price was: $5,460.00.$4,641.00Current price is: $4,641.00.
The Nabertherm TOP 60R ceramic kiln is reliable and easy to use. Featuring energy-efficient refractory insulation inside the chamber and three layers of 15mm microporous rear insulation that allows for a top temperature of Cone 10 (2408°F / 1320 °C) with minimum energy consumption. The kiln also comes equipped with Nabertherm’s advanced AC590 touchscreen kiln controller and cone firing assistant.
The Top 60R is ideal for frequent use at high temperatures. The increased connected load enables the kilns to heat up much faster. Regardless whether for biscuit firing, earthenware, overglaze firing, soft-paste porcelain or stoneware.
Maximum Firing Temperature: Cone 10 (2408°F / 1320 °C)
Inside Chamber Dimensions: 16″ x 16″ x 17.8″ (2.11 Cubic ft.)
Outside Dimensions: 23.6″ W x 35″ D x 35.4″ H.
Kiln weight: 163lbs.
| Electrical Specifications | |||||
|---|---|---|---|---|---|
| Voltage | Phase | Load | Amps | Breaker | Plug Type |
| 240-Volt | 2/PE | 5.6 kW | 23.2 | 30 Amp | NEMA 6-30 |
| 208-Volt | 2/PE | 5.6 kW | 26.7 | 50 Amp | NEMA 6-50 |
| 240-Volt | 3/PE | 5.6 kW | 26.7 | 30 Amp | NEMA 15-30 |
| 208-Volt | 3/PE | 5.6 kW | 23.2 | 50 Amp | NEMA 15-30 |
Standard with TOP 60R
- Optimized insulation construction for a perfect balance between the best possible energy consumption and short cycle times.
- Automatic lid lock upon opening for additional safety.
- Kiln stand with castors.
- Type S Thermocouple protected in the insulation.
- APM Elements
- Bypass connector for an exhaust air pipe.
- Gas-pressured springs as lid lifer.
- Low noise electronic relays.
- Adjustable air inlet in the kiln slab for good ventilation and shorter cooling times.
Controller Features
- Kiln mounted or removable for handheld operation.
- NTLog Basic for recording of process data with USB-Flash drive.
- Freeware NTGraph for evaluation and documentation of firings using Excel.
- Freeware NTEdit for convenient program input via Excel.
- Optimized insulation construction for a perfect balance between the best possible energy consumption and short cycle times.
- Controller can be switched to “Solar Mode” to use electricity from PV systems with and without battery.
- MyNaberTherm App for online monitoring of the firing on mobile devices for free download.
Complete with a 36 month manufacturer warranty!
Details
- fuel: Electric
- voltage Options: 208, 240
- phase Options: 1 Phase, 3 Phase
- shape: Circle
- cone range: High Fire
- brick size: 2.5"
- loading type: Top
- controller: Touchscreen
Nabertherm
Nabertherm kilns are the premium choice for hobby, workshop, and professional use. Handcrafted in Germany using the best materials available, Nabertherm kilns are characterized by excellent firing results, durable construction, reliability, energy efficiency, economic firing cycles, and innovative design.
Insulation
Nabertherm top loaders are equipped with energy-efficient refractory insulation inside the chamber and microporous rear insulation that allows you to reach a top temperature of 1320 °C (2408 °F) with minimum energy consumption.
- Three layers of high-quality 15 mm microporous rear insulation for top loaders up to 60 liters to ensure that you reach your firing temperature reliably
- Two layers of high-quality 20 mm microporous rear insulation for top loaders from 80 liters for a well-balanced ratio between energy-saving heating and shorter cooling times for the kiln
- Automatic lid lock upon opening for additional safety
Controller
- Controller with touch operation AC590 including cone firing assistant
Standard equipment
- Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
- Freeware NTGraph for evaluation and documentation of firings using ExcelTM for WindowsTM on the PC
- Freeware NTEdit for convenient program input via ExcelTM for WindowsTM on the PC
- Optimized insulation construction for a perfect balance between the best possible energy consumption and short cycle times
- Controller can be switched to “Solar Mode” to use electricity from PV systems with and without battery
- MyNabertherm App for online monitoring of the firing on mobile devices for free download
- Defined application within the constraints of the operating instructions
Shop Pottery Kilns
From large-scale pottery kilns for production studios to kilns for your home, Clay-King has you covered!
We know that professional pottery kilns are a significant investment toward your artistic goals, so we’re here to help! Our customer service team can help you find the best kiln for your specific needs and can offer tips to better maintain your kiln throughout the years.
If it’s your first time purchasing a production-grade pottery kiln, we can help you get started by finding the right voltage, fuel type, chamber capacity, loading type, and more. We carry pottery kilns from top manufacturers including Skutt, Olympic Kilns, L&L, Evenheat, and Amaco. Our warehouse is stocked with small, medium, and large kilns to fit the needs of any pottery studio.
Why Choose Clay-King for Kilns?
When you shop with Clay-King, you’re choosing a company that stands behind our kilns, clay, and products. You can rely on our team to provide unbeatable customer service and help you succeed.
Massive Kilns Inventory
Clay-King is a leading supplier of pottery kilns and ceramic pottery products. Our warehouse is always stocked with pottery kilns of various sizes, fuel types, and brands. You can also find other kiln accessories you’ll need for your project.
Fast Shipping on Kilns
Thanks to Clay-King’s in-house warehouse department, we can ship your pottery kiln fast! You can expect speedy delivery and expert packing, so your pottery kiln arrives in the best condition possible.
Incredible Customer Service
Our experienced potters and customer service team supports you every step of the way. Whether it’s a question about setting up your pottery kiln or you’re seeking recommendations for your next clay project, the Clay-King experts are here to help!
