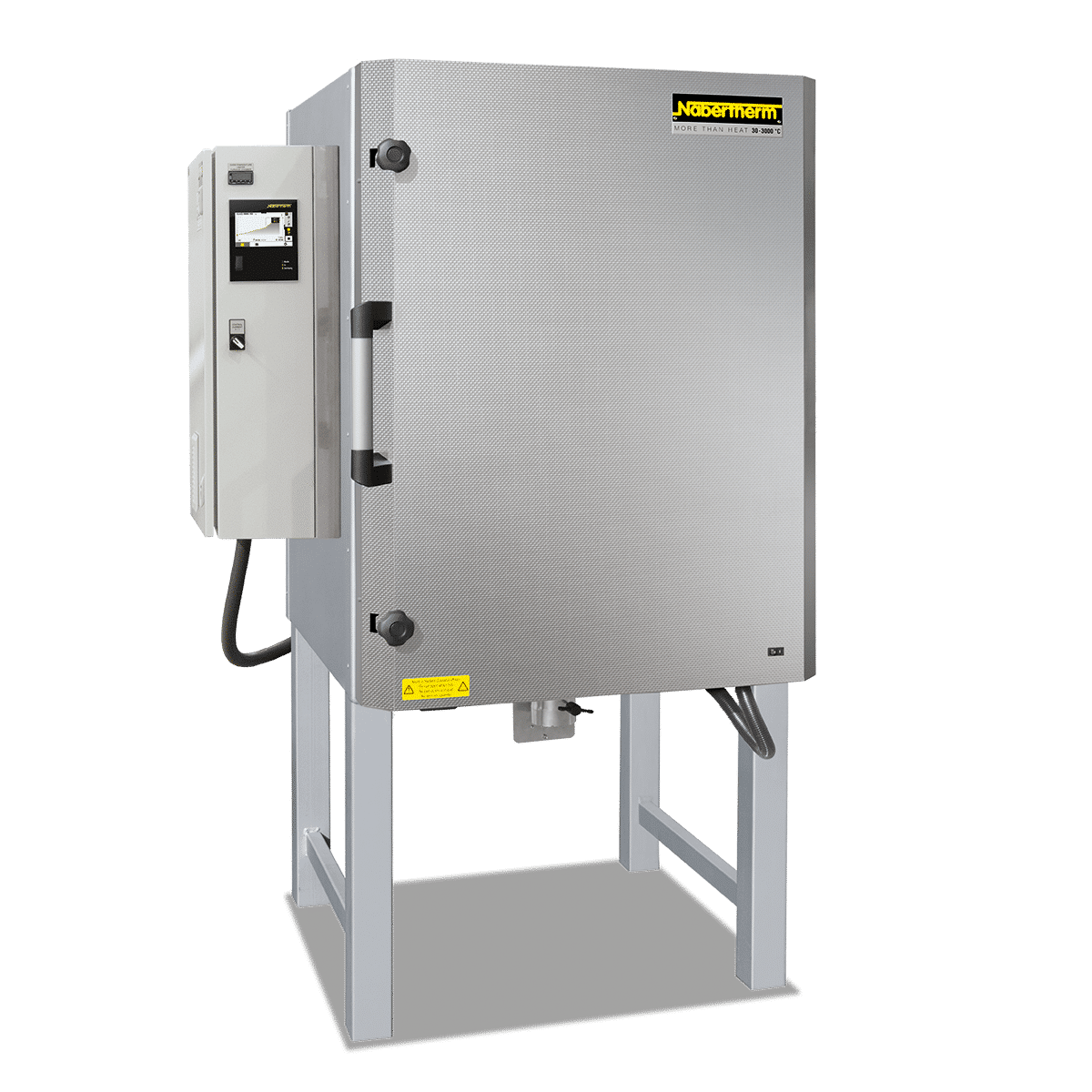

Nabertherm N 200 – Front-Loading Ceramic Kiln with 18.5″ x 20.9″ x 30.7″ Chamber
Original price was: $16,680.00.$15,012.00Current price is: $15,012.00.
The Nabertherm N 200 ceramic kiln is a reliable and easy to use, front-loading kiln. This series of kilns utilizes heating elements on 5 sides of the kiln chamber in a special arrangement, providing excellent temperature uniformity. These chamber kilns have proven their worth for many years, firing stoneware, porcelain and glass, even when tightly stacked and at high working temperatures. Whether you are working in your ceramic studio or school classroom environments, Nabertherm chamber kilns will meet your needs. They are a reliable partner even if you pack your kiln tightly and fire it frequently, guaranteeing excellent temperature uniformity.
Featuring energy-efficient multi-layer refractory insulation that allows for a top temperature of Cone 10 (2372°F / 1300 °C) with minimum energy consumption. The kiln also comes equipped with Nabertherm’s advanced AC590 touchscreen kiln controller and cone firing assistant.
Maximum Firing Temperature: Cone 10 (2372°F / 1300 °C)
Inside Chamber Dimensions: 18.5″ x 20.9″ x 30.7″ (7.06 Cubic ft.)
Outside Dimensions: 46.7″ W x 44.5″ D x 69.3″ H.
Kiln weight: 838lbs.
| Electrical Specifications | |||||
|---|---|---|---|---|---|
| Voltage | Phase | Load | Amps | Breaker | Plug Type |
| 240-Volt | 3/PE | 15.2 kW | 37.0 | 50 Amp | Fixed connection |
| 208-Volt | 3/PE | 15.2 kW | 42.7 | 60 Amp | Fixed connection |
Standard with N 200 Chamber Kiln
- Heating from 5 sides of the kiln chamber in a special arrangement, providing excellent temperature uniformity.
- SiC shelves to protect the floor heating and provide a level setting surface.
- Multi-layer refractory insulation with light-weight refractory bricks.
- Brick on brick door seal.
- Sturdy frame.
- Heating elements on support tubes for free heat radiation.
- Dual shell housing provides for low temperatures.
- Low noise electronic solid state relays.
- Semi-automatic air inlet flap that closes automatically after the drying phase in the heating program.
- Protected door contact switch.
Controller Features
- Kiln mounted or removable for handheld operation.
- NTLog Basic for recording of process data with USB-Flash drive.
- Freeware NTGraph for evaluation and documentation of firings using Excel.
- Freeware NTEdit for convenient program input via Excel.
- Optimized insulation construction for a perfect balance between the best possible energy consumption and short cycle times.
- Controller can be switched to “Solar Mode” to use electricity from PV systems with and without battery.
- MyNaberTherm App for online monitoring of the firing on mobile devices for free download.
Complete with a 36 month manufacturer warranty!
Details
- fuel: Electric
- voltage Options: 208, 240
- phase: 3 Phase
- shape: Square
- cone range: High Fire
- brick size: 2.5"
- loading type: Front
- controller: Touchscreen
Nabertherm
Nabertherm kilns are the premium choice for hobby, workshop, and professional use. Handcrafted in Germany using the best materials available, Nabertherm kilns are characterized by excellent firing results, durable construction, reliability, energy efficiency, economic firing cycles, and innovative design.
Insulation
Nabertherm front-loader chamber kilns are equipped with energy-efficient multi-layer refractory insulation and light refractory bricks, allowing you to reach a top temperature of 1300 °C (2372 °F) with minimum energy consumption.
Controller
- Controller with touch operation AC590 including cone firing assistant
Standard equipment
- Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
- Freeware NTGraph for evaluation and documentation of firings using ExcelTM for WindowsTM on the PC
- Freeware NTEdit for convenient program input via ExcelTM for WindowsTM on the PC
- Optimized insulation construction for a perfect balance between the best possible energy consumption and short cycle times
- Controller can be switched to “Solar Mode” to use electricity from PV systems with and without battery
- MyNabertherm App for online monitoring of the firing on mobile devices for free download
- Defined application within the constraints of the operating instructions
- Heating elements on support tubes ensure free heat radiation
- Heating from five sides and a special arrangement of the heating elements ensure excellent temperature uniformity

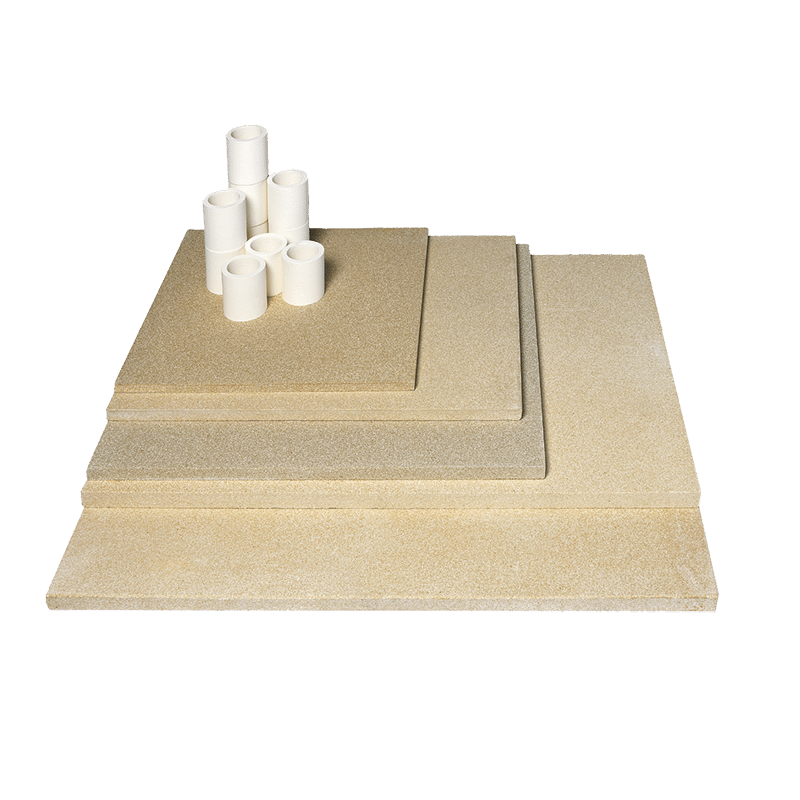

- SiC shelves to protect the floor heating and provide a level setting surface
- Frame
- Door cover made from structured stainless steel

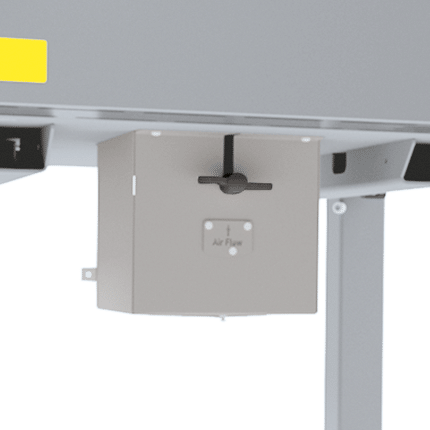

- Semi-motorized air inlet flap that closes automatically after the drying phase in the heating program for chamber kilns up to 300 liters
- Motor-driven exhaust air flap in the middle of the kiln roof for optimum ventilation of the kiln chamber for chamber kilns from 440 liters
