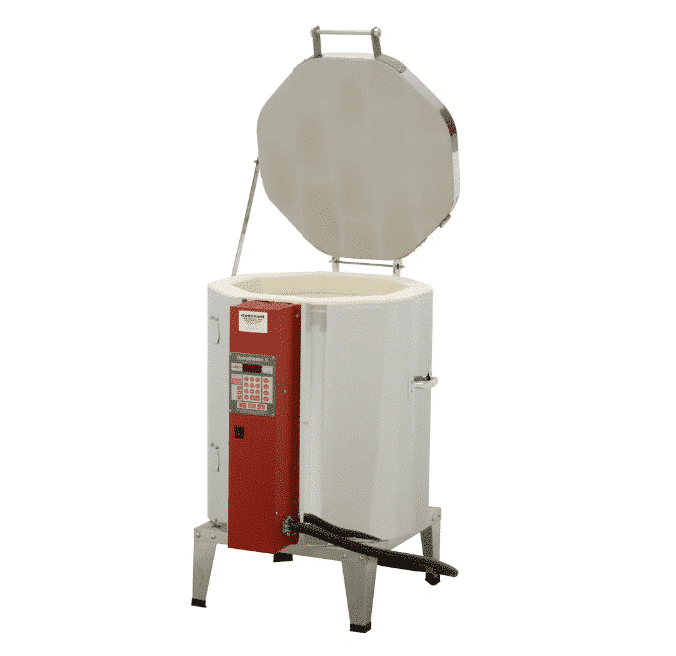

Evenheat HF 1818 Ceramic Kiln

Kiln Overview

Features

Top Load

The HF 1818 is a top loading design and offers a chamber 17.5″ diameter x 18 deep. The HF 1818 is, and always has been the most popular size for the individual cone 10 ceramic artist. Width and depth are perfect, shelves and ware are easy to load and the firing results are beautiful.

Wonderful Lid Handle

We love handles. Handles have to be properly sized and shaped for the job. Our lid handles make this point by offering an 8″ handle that’s easy to grasp and operate.

This wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand. It’s unlike any other and it’s a joy to use.

Multi-Zone Control

The HF 1818 is designed with multi-zone control. Multi-Zone control means the kiln uses more than one thermocouple (temperature sensor) to control the heat in the firing chamber.

The kiln chamber is divided into heat zones, each with its own thermocouple. Each zone temperature is controlled very precisely. The end result is a very even temperature distribution from top to bottom.

2 Position Lid Vent

The HF 1818 is equipped with a 2 position lid vent. Perfect for speeding up the cooling process.

Swing View Equipped

The HF 1818 temperature controls are fitted to our Swing View Adjustable Enclosure.

The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you’re done, lay it back down to see it from across your studio. It’s that simple.

The swing view pairs well with touchscreen controls like the TAP I and Icon+ as viewing angle can be perfectly aligned. You’ll love it.

3″ Firebrick with No Loss of Chamber Volume

Historically kiln designs were based on 2-1/2″ firebrick. As 3″ firebrick began to show favor in high temperature designs many kiln manufacturers simply reduced the firing chamber size to accommodate the thicker firebrick while leaving the outside dimensions the same.

At Evenheat we took a different direction. Instead of making the chamber smaller we kept it the same while increasing the outside dimensions. In this way there is no loss in chamber volume and common, standard kiln furniture would continue to fit. Nice.

Swing-Away Peephole Covers

Our kiln designs feature swing-away peephole covers as opposed to plugs.

Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won’t lose them and they certainly won’t break.

Lid Prop

The HF 1818 is provided with a lid prop bar that positively keeps the lid in the open position. Simple operation is made even easier with our well designed lid handle.

Relay Access Port

The HF 1818  incorporates our Relay Access Port for simple, no-panel-off relay replacement.

​Simply remove the access plate to gain access to the mechanical relays. There’s no need to remove the control panel and dig into the internal wiring. It’s absolutely simple and effective and all it takes is a screwdriver!

​It’s a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Full Stainless Steel Jackets

Multi-section, multi-jacketed kilns were conceived to lower production costs for the kiln manufacturer and to make life easier for the person installing the kiln. These are worthy goals but they come at the cost of kiln quality. It’s a trade off we’re not willing to make.

We build our kilns with full stainless jackets from top to bottom. Full stainless jackets mean absolutely solid, life extending construction. There are no leaks, no shifting and no weakness. Insist on Full Stainless Jackets for true build quality.

​Weight: 155lb. (70.5Kg) – Approx.

​Shipping Method: Freight Truck

Operates properly on both 50Hz and 60Hz

Not Available in 3 phase Delta or Wye designs

​Consult with an electrician for proper fuse panel, service wire size, receptacle, and fusing requirements. This model, used for its intended and expected purpose, would not be defined as “continuous use”. Continuous use is defined as continuous, full power on for 3+ hours.

​NRTL Listing Agency – TUV Listed United States and Canada – Designed and Tested to CSA & U/L 499

​California Prop 65
HF 1818 models may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
