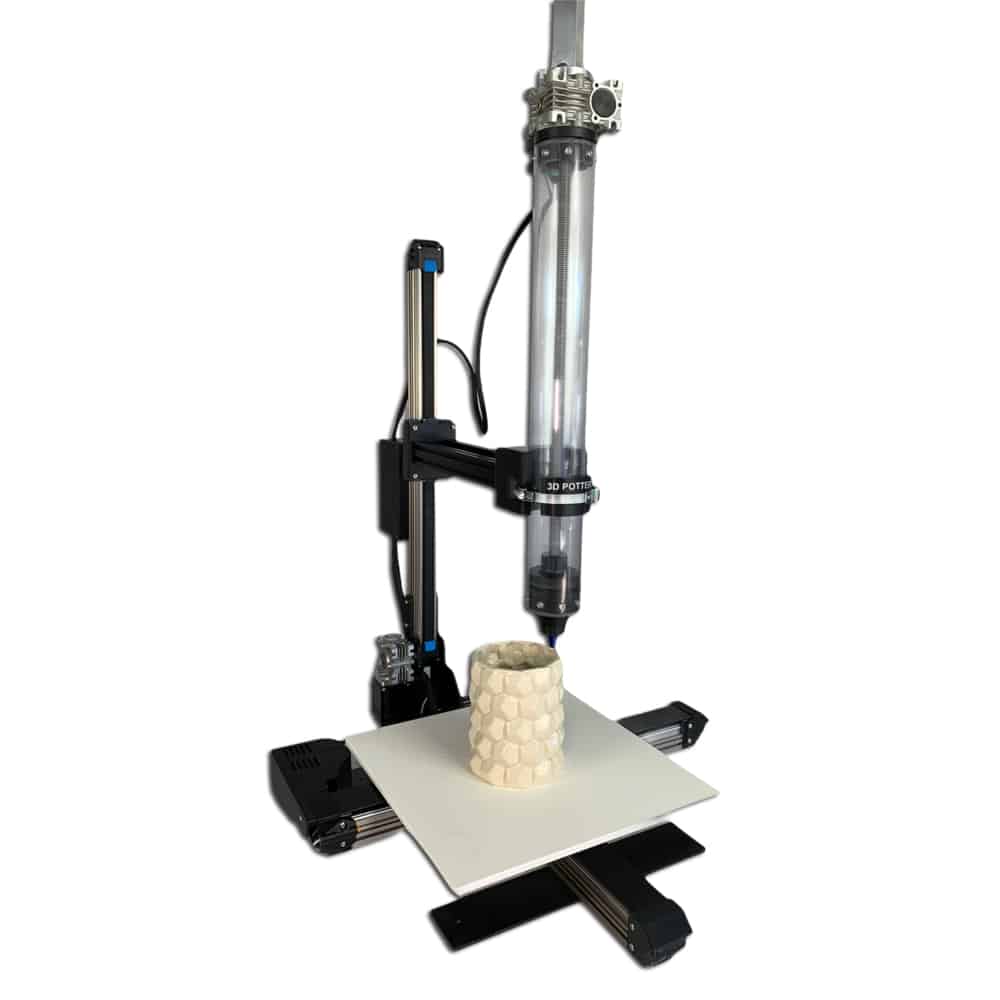

3D Potter PotterBot 10 Pro Ceramic 3D Printer

The 10 PRO is the first printer in our lineup that uses hybrid motors on every axis. Utilizing the hybrid stepper motor with our clay extruder gives you faster extrusion speeds and higher volume output. This means you can use larger nozzles AND your print time will be reduced. The hybrid stepper motor on the extruder is capable of higher forces so a thicker paste material can be extruded. The motors have their own internal torque settings, so if there is a blockage, they will shut themselves off automatically.

3As the name suggests, this printer is preferred by professionals who like to print multiple vessels at a time, or many single prints back to back.

3D Potter ceramic 3D printers use high quality anodized aluminum rails. These rails are robust and have a smooth surface, allowing for easy movement of parts while being able to withstand classroom or industrial environments.

The unique feature of 3D Potter Potterbot 3d ceramic printers is the direct extrusion of real clay. Other brands use a compressed air system printing slip (watered down clay or alcohol diluted clay). The advantage of direct extrusion is 3D printing full body clay, or other paste-like materials. All materials used to build our clay printers are food grade, so get creative.

We keep improving our 3D printer designs. The 10th generation brings a new wireless feature with a full web interface controlled over WiFi. You can now control and upload files to the printer from multiple devices simultaneously. The interface allows you full control over every setting of the machine.

The 10th gen has a new uniform nozzle design for improved performance, across all of our printers. This allows you to interchange nozzles between all 3D Potter 3D clay printers, from the Micro to the Scara V4.

What’s Included: 3D Potterbot 10 Pro
Close Loop Stepper Motors on X, Y, Z, extruder
2000 ml extruder, 2 tubes
4 nozzles (standard sizes: 3.5, 4.13, 5, and 6.4 mm)
Parts Box: Alan key set, grease, Acme driver tool, tie wraps, extra screws
Power Supply, USB Cable

Specifications:
Printer Envelope: X-16″ (415mm) Y-16″ (405mm) Z-20″ (500mm)
Printer Size: W-26″ L-34″ H-36″
Operation Needed: W-32″ L-40″ H-78″
Bat Diameter (printer bed) 15″ (381mm)
Height to the top of the extruder fully extended is 78″ (1981mm)
Recommended print speed: 1.1″/s’ to 5.1″/s (30 to 130 mm/s)
Maximum print speed: 7.9in”/s (200mm/s)
Power Supply: Output – 24V 10 amps, Input – 100-240V, 50-60 Hertz.
Power Consumption: 24V ~4 amps, ~96 Watt
Main controller board running Duet3D with Atmel SAM4E8E: 120MHz ARM Cortex-M4
